Ufine Bearing CO., LTD is a Chinese bearing manufacturer which is located in the city of JiNan - the provincial capital of ShanDong province, China. The enterprise professional concentrates on manufacturing all kinds of bearings as our own brand “UFE”, mainly include roller bearings and ball bearings. And we have also set a long-term cooperation with several famous bearing companies in the world, such as NSK, NACHI, KOYO, INA. The products we produce have already been sold to all over China and also abroad, the bearing brand “UFE” enjoys high states in the rolling bearing industry of China and is highly praised by our customers.

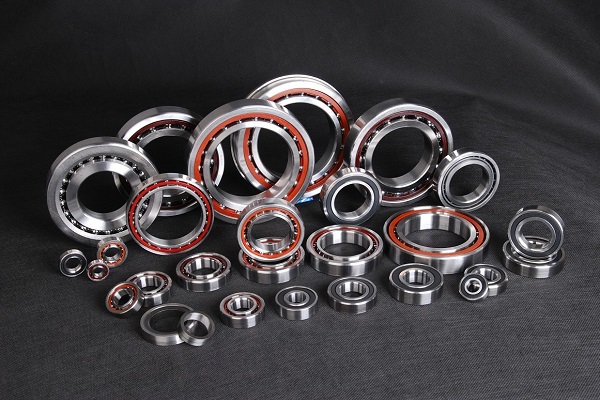

Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis

The most commonly used designs are:

single row angular contact ball bearings

double row angular contact ball bearings

four-point contact ball bearings

In addition to the bearings presented in this section, other angular contact ball bearings include:

Super-precision angular contact ball bearings

Double row cam rollers

Fixed section angular contact ball bearings

Hub bearing units

List :

NO.	SIZE (mm)
NO.	d	D	B	r	r1
71800C	10	19	5	0.3	0.1
71800AC	10	19	5	0.3	0.1
71801C	12	21	5	0.3	0.1
71801AC	12	21	5	0.3	0.1
71802C	15	24	5	0.3	0.1
71802AC	15	24	5	0.3	0.1
71803C	17	26	5	0.3	0.1
71803AC	17	26	5	0.3	0.1
71804C	20	32	7	0.3	0.1
71804AC	20	32	7	0.3	0.1
71805C	25	37	7	0.3	0.1
71805AC	25	37	7	0.3	0.1
71806C	30	42	7	0.3	0.1
71806AC	30	42	7	0.3	0.1
71807C	35	47	7	0.3	0.1
71807AC	35	47	7	0.3	0.1
71808C	40	52	7	0.3	0.1
71808AC	40	52	7	0.3	0.1
71809C	45	58	7	0.3	0.1
71809AC	45	58	7	0.3	0.1
71810C	50	65	7	0.3	0.1
71810AC	50	65	7	0.3	0.1
71811C	55	72	9	0.3	0.1
71811AC	55	72	9	0.3	0.1
71812C	60	78	10	0.3	0.1
71812AC	60	78	10	0.3	0.1
71813C	65	85	10	0.6	0.3
71813AC	65	85	10	0.6	0.3
71814C	70	90	10	0.6	0.3
71814AC	70	90	10	0.6	0.3
71815C	75	95	10	0.6	0.3
71815AC	75	95	10	0.6	0.3
71816C	80	100	10	0.6	0.3
71816AC	80	100	10	0.6	0.3
71817C	85	110	13	1	0.3
71817AC	85	110	13	1	0.3
71818C	90	115	13	1	0.3
71818AC	90	115	13	1	0.3
71819C	95	120	13	1	0.3
71819AC	95	120	13	1	0.3
71820C	100	125	13	1	0.3
71820AC	100	125	13	1	0.3
71821C	105	130	13	1	0.3
71821AC	105	130	13	1	0.3
71822C	110	140	16	1	0.3
71822AC	110	140	16	1	0.3
71824C	120	150	16	1	0.3
71824AC	120	150	16	1	0.3
71826C	130	165	18	1.1	0.6
71826AC	130	165	18	1.1	0.6
71828C	140	175	18	1.1	0.6
71828AC	140	175	18	1.1	0.6
71830C	150	190	20	1.1	0.6
71830AC	150	190	20	1.1	0.6
